- SSM (Federal Approval)
- NCOP VSB Design Approval
- LT2 Lane Change Test Passed
Fully computer designed, analysed and tested well beyond the ADR strength recommendations without failure.
Exclusive Partnership with JRACE Industries
X
Modern Design Philosophy
While other kits on the market replicate OEM suspension geometry designs (some over 30 years old), JRace has started from scratch with modernc omponents, to give you the best driving experience possible with today's technologies.
Years of Development
After years in the design stages, hundreds of hours in CAD, and ongoing revisions, JRace has achieved what others in the industry say is not possible or viable on the 70 series chassis. The JRace Detour 70 is the most technically advanced coil conversion on the Australian market.
Enhanced Stopping Power
Enhanced stopping power for safer, more controlled descents incorporating upgraded handbrake, brake booster and lines.

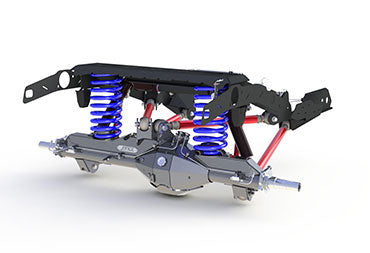

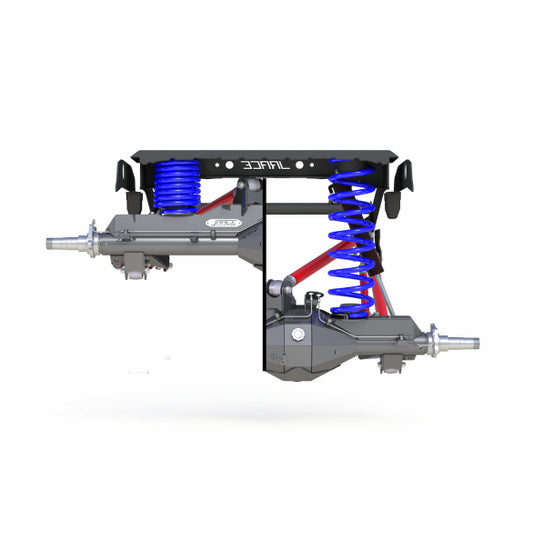

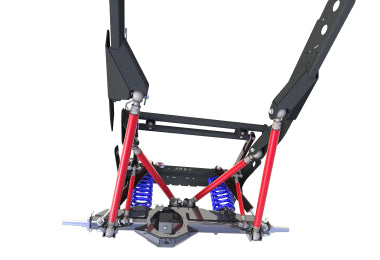

Double Triangulation
Our IP-registered double triangulation enhances stability and roll control, delivering safe, confident handling under load, cornering, towing, or accelerating.
Custom-Tuned Performance
Custom suited coil springs paired with optimised shock lengths and custom valving for maximumon-road comfort while maintaining articulation off-road.
Heavy-Duty Build
Rear axle capacity up to 3T, engineered for over 4T GVM. Weld-in approach for a complete factory-like installation with maximum strength.
Versatile Load Management
Medium duty coil springs paired with Airbag assist system allow versatility for varying loads and towing.
SSM approval
SSM Federal Approval (pre-reg) and post-reg in selected states. NCOP VSB and LT2 Lane Change tested.
In-House Development

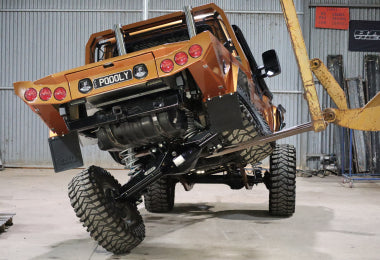

Purpose-built components to support increased articulation and suspension travel.
Beyond ADR Strength
Fully computer designed, analysed and tested well beyond ADR strength recommendations without failure.
JRace Detour 70 Coil Conversion Technical Specifications
Fully computer designed, analysed and tested well beyond ADR strength recommendations without failure
Currently certified post rego in most VSB14 states to 4 inch suspension lift, 315/70 R17 tyres and 4050 kg GVM (check state regulations). Available pre-registration Australia wide.
JRace Detour 70 Complete System Inclusions
JRace’s No Compromises approach includes all the best of the best components available on the market
Core Conversion Components
- ✓ Double Triangulated Coil Conversion
- ✓ Summit Machine Flex Joints
- ✓ Heavy Duty Torsional Sway Bar
- ✓ Track Corrected Chromoly Housing (3020kg rated)
- ✓ 300M Billet Axles and Drive Plates
- ✓ Billet CNC 4130 One-Piece Spindles
Suspension & Lift
- ✓ 4" Front & Rear Coil Suspension Lift
- ✓ Custom Progressive Spring Rates
- ✓ Rear Coil Retainers
- ✓ Remote Res Custom Valved Shocks (Dobinsons MRA/King)
- ✓ Adjustable Steering Damper
- ✓ JRace Stainless Steel Shock Res Mounts
- ✓ JRace Heavy Duty Castor Radius Arms
- ✓ JRace Billet Sway Bar Spacers
- ✓ JRace Billet Prop Shaft Spacer
- ✓ JRace Billet Bump Stop Kit>
- ✓ Adjustable Panhard
Brake & SafetyUpgrades
- ✓ Dual Diaphragm Brake Booster
- ✓ Braided Brake Lines Upgrade
- ✓ Handbrake Upgrade
- ✓ CNC Stainless Brake Hard Lines
- ✓ ABS Relocation Kit
Additional Components
- ✓ HP Airbag Assist Kit
- ✓ GVM Rated Chassis Bracing
- ✓ Link Brackets and Coil Hat
- ✓ Speedo Correction to Suit Tyre Size
- ✓ Front & Rear Mudflaps
- ✓ CAT 6 Indicators (Pre 2022 Only)
- ✓ Cross Member Notch Kit (VDJ79 S/Cab)
- ✓ Front Flare Extension Kit (Rear VDJ76/78)
- ✓ Custom 3" Exhaust Cab Back
Optional Extras Available
- ✓ 300mm Chassis Extension (available to suit dual cab)
- ✓ Billet 7075 Heavy Duty Steering Links
- ✓ Rim and Tyre Packages Available (315/70R17)
Drive In, Drive Out
Complete installation including state certification & engineering — no hidden or additional costs for certification post registration.
Component Installation
Comprehensive installation of all components by Ultimate Offroad technicians.
Chassis Treatment
Extensive 2K epoxy chassis paint with cavity fill for protection.
Calibration & Setup
All necessary adjustments, calibrations and tension checks.
Final Alignment
Complete wheel alignment to ensure optimal performance and safety.
Authorised JRace Installation Facility
Available for installation only by Authorised JRace Installation Facilities.
