Snorkels

A snorkel is two things: a high-mounted air intake that lifts the engine breathing point above water level, and a higher-altitude clean-air feed that reduces dust ingress on remote tracks. Most owners fit a snorkel for water crossings, then realise the bigger benefit is dust. The factory air intake on most 4WDs sits low under the bonnet or in the front guard, where it inhales the cloud of dust kicked up by the wheels of the vehicle in front.

A snorkel relocates the intake to roof level, where the air is dramatically cleaner. The result is longer air filter service life, less particulate making it into the intake, and no risk of hydrolocking the engine on a deep water crossing. For touring rigs that see corrugated outback roads, beach driving, or any water deeper than the bumper, a snorkel is one of the highest-value modifications you can fit.

KEY CATEGORIES AND WHAT THEY'RE BUILT FOR

WHY SAFARI

Safari has been making 4WD snorkels in Australia for decades. The kits are vehicle-specific: every snorkel is engineered to match the airflow, mounting points and engine bay layout of one specific make, model and year. The mouldings are UV-stabilised for Australian sun, the seals are designed for the dust and vibration of remote-track driving, and the kits include the ECU mounting brackets, sensors and clamps needed for the install.

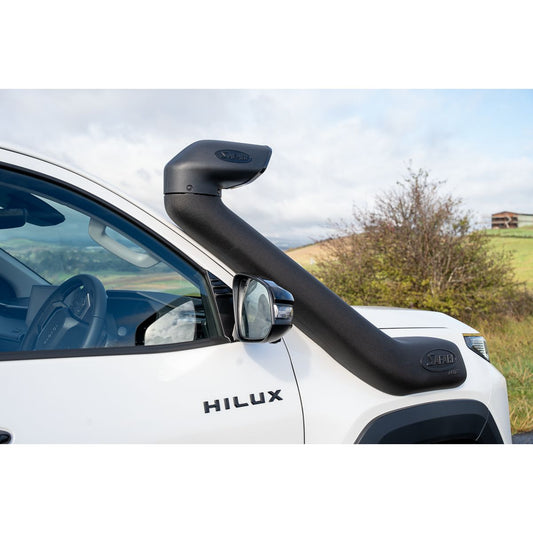

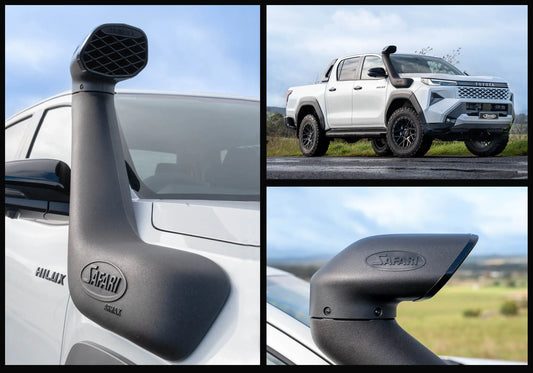

For most popular Australian 4WDs the Safari V-Spec or ARMAX is the standard fitment. The ARMAX delivers higher airflow for tuned engines and high-load tow rigs without compromising filtration, while the V-Spec is the default for stock and lightly modified vehicles.

WHY DUST IS THE BIGGEST WIN

Roof-level air is dramatically cleaner than bumper-level air. On the corrugated outback roads where dust clouds linger for kilometres behind the vehicle in front, the difference between a factory bumper-level intake and a roof-level snorkel is night and day. Air filter service life typically doubles or triples on a touring rig with a snorkel, and the engine's intake tract stays cleaner for longer.

For beach driving the same applies: salt-laden spray sits low, and lifting the intake gets the engine breathing cleaner air. Engine longevity on remote-touring rigs is heavily influenced by intake cleanliness over time, which is why this is a high-value early modification.

WATER CROSSING CAPABILITY

A snorkel raises the safe water-crossing depth dramatically, in most cases to roughly the bottom of the windscreen. But water crossings depend on more than just air intake: differential breathers, electrical seals, transmission breathers and brake function all factor in.

If you cross any water more than 200mm deep, fit extended diff breathers as well. Factory breather hoses sit low under the vehicle: hot diff hits cold water, internal pressure drops, water gets sucked through the breather, diff oil emulsifies, bearings die. Extended breathers route the breather lines high (under the bonnet or up to the bull bar) so the diffs vent dry air, not water.

SNORKEL AND AIR INTAKE PAIRING

The snorkel itself is the visible part. The work below the bonnet is the rest. A clean snorkel install includes a properly sealed air filter housing, a vehicle-specific air ram or pre-cleaner where required, and confirmation that the ECU airflow sensor is reading correctly.

We pair Safari snorkels with the matching Safari intake kit on builds where airflow matters (tuned diesels, heavy tow rigs). For builds running heavy dust, snorkel pre-filters add a cyclonic or foam stage that catches the worst of the particulate before it reaches the main filter.

WHAT A QUALITY SNORKEL INSTALLATION INVOLVES

A snorkel install requires drilling and cutting the front guard panel and the airbox. Get the cut wrong and the panel never sits right; get the seal wrong and the engine sucks unfiltered air through gaps, which defeats the entire point. Get the ECU airflow sensor relocation wrong and the engine throws check-engine codes. None of this is owner-fit territory unless you have done several before.

We do snorkel installs at Ferntree Gully and Pakenham with vehicle-specific templates, proper sealant, full panel alignment and post-install ECU check. We confirm a firm timeframe at booking. Send a service enquiry with your vehicle make, model, year and engine variant, and we will quote and book.
