Engine Monitors

An engine monitoring system turns data from your vehicle's OBD2 port into readings you can use while driving or diagnosing a fault. Depending on the vehicle and selected unit, that may include coolant temperature, intake air temperature, boost pressure, engine load, battery voltage and fuel-use data. An OBD2 scan gauge such as ScanGauge presents the information on a compact digital display.

On a touring 4WD, the main benefit is seeing useful trends before the factory warning light becomes the only available information. A permanent ScanGauge can help you watch temperature and load while climbing, towing or travelling in hot conditions. Fuel-use changes can also prompt a check of tyre pressure, load or vehicle condition, although an engine performance monitor does not diagnose the cause by itself.

A diagnostic code reader serves a different purpose. It retrieves fault information when a warning light appears and may allow stored codes to be cleared after the cause has been investigated. ScanGauge and Ultimate9 Codebreaker products overlap in some functions, but the right choice depends on whether you need continuous monitoring, periodic diagnostics or both.

KEY CATEGORIES AND WHAT THEY'RE BUILT FOR

CHOOSE BY USE CASE

Choose a ScanGauge when you want engine monitoring available throughout the drive. ScanGauge II suits a compact installation with button controls. The colour touchscreen ScanGauge suits drivers who prefer a larger display and simpler on-screen navigation.

Choose an Ultimate9 Codebreaker when fault-code access is the priority. The handheld unit is suited to occasional checks. The 4 Mode unit adds live information for owners who want more than basic code reading. Some touring owners use a ScanGauge as the permanent monitor and carry an Ultimate9 Codebreaker for separate diagnostic work.

SCANGAUGE VS ULTIMATE9 CODEBREAKER

A ScanGauge is primarily a driving display with diagnostic capability. A permanent ScanGauge lets the driver review selected data without connecting a separate tool for each check. The ScanGauge display still depends on what the vehicle makes available through OBD2, so not every parameter will appear on every vehicle.

An Ultimate9 Codebreaker is more diagnostic in focus. It is useful when a warning light appears or when stored fault information needs to be checked. Clearing a code does not repair the underlying problem, and repeated or serious faults should be assessed by a workshop.

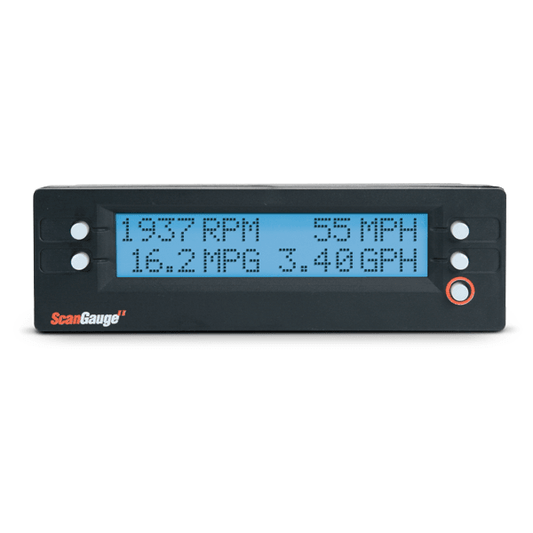

SCANGAUGE II VS COLOUR TOUCHSCREEN SCANGAUGE

ScanGauge II is the established compact format, with a small display and physical controls. The newer ScanGauge uses a colour touchscreen, larger display and updated interface. Both ScanGauge options are designed to make vehicle data easier to read, but their size and operation differ.

Choose ScanGauge II when compact mounting is the priority. Choose the colour touchscreen ScanGauge when display size and menu access matter more. Vehicle compatibility should be checked before either unit is ordered or fitted.

BRANDS WE STOCK AND WHY

ScanGauge Australia supplies the ScanGauge II and the colour touchscreen ScanGauge represented in this collection. ScanGauge products are aimed at continuous data display, trip information and fault-code access. Their compact format makes them relevant to touring builds where dashboard space and clear visibility both matter.

Ultimate9 supplies the Ultimate9 Codebreaker range in this collection. The handheld and 4 Mode products cover different levels of diagnostic use. Either can be selected independently or used alongside a ScanGauge where separate monitoring and diagnostic tools suit the build.

WHAT A QUALITY ENGINE MONITOR INSTALLATION INVOLVES

A ScanGauge installation is straightforward in principle, but the mount position and cable route still need proper attention. The ScanGauge cable runs from the diagnostic port to a position where the display can be read without distracting the driver. The mount must not obstruct the driver's view, interfere with controls or sit in an airbag deployment area.

The same positioning principles apply when an Ultimate9 Codebreaker is mounted for ongoing use. A handheld Ultimate9 Codebreaker should be stored securely and kept accessible with the vehicle's other diagnostic or recovery equipment.

Before fitting any monitoring systems, check the product manufacturer's instructions and the requirements that apply to the vehicle and state. OBD2 compatibility does not, by itself, confirm that every requested parameter is available or that every mounting position is acceptable.

Our Ferntree Gully and Pakenham workshops can help you select and fit a ScanGauge or Ultimate9 Codebreaker for your vehicle. We can assess the available mounting positions, route the cable cleanly and configure the initial display. Send us your vehicle details and intended use so we can confirm compatibility, quote the work and arrange a booking.

Submit a service enquiry with your vehicle details, or email sales@ultimateoffroad.com.au, and our friendly staff will confirm fitment, quote the work and arrange a booking at Ferntree Gully or Pakenham.
