Made to Order Product
Current Manufacturing Lead Time: Please Enquire
If you need more information or have specific time requirements, feel free to contact us

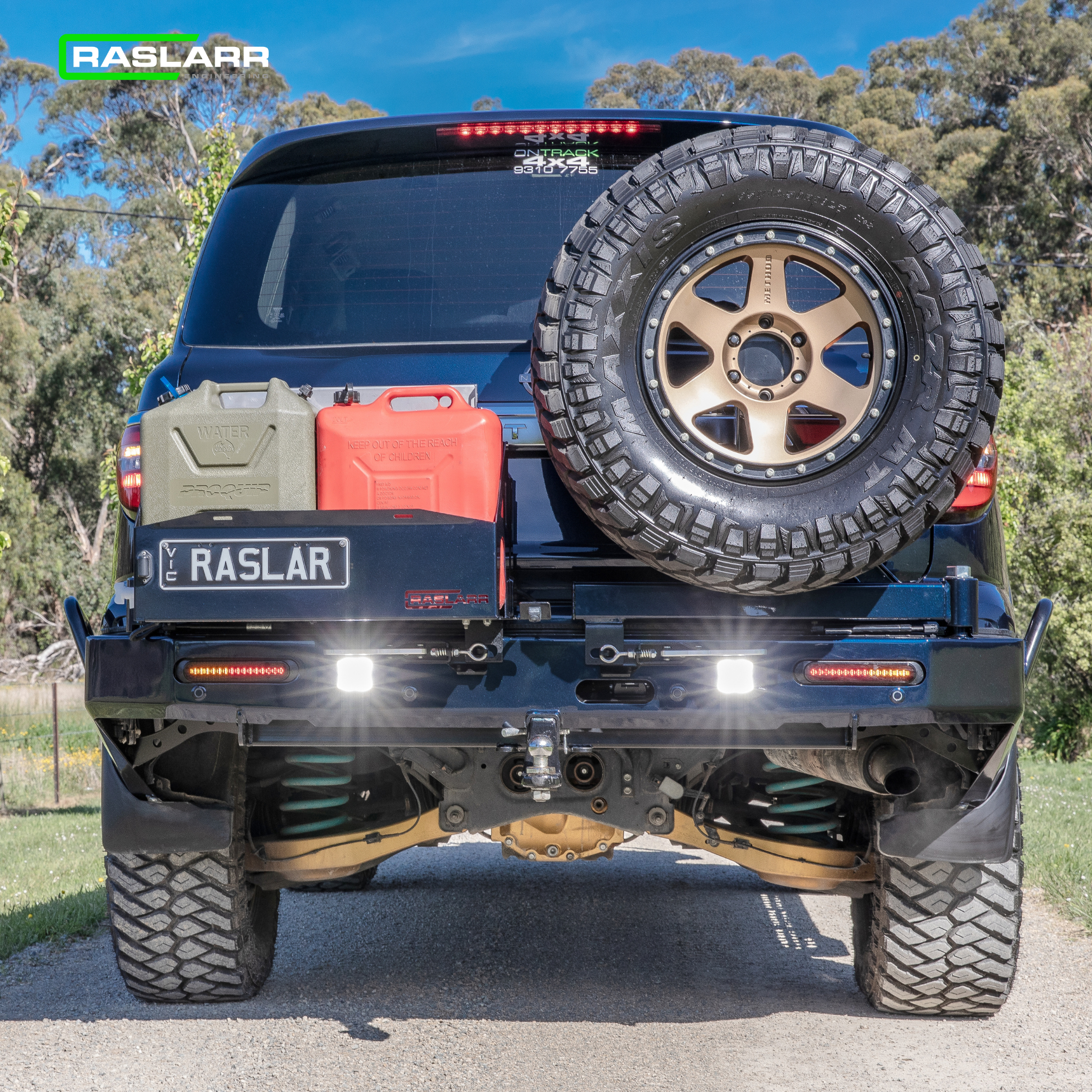

Raslarr Y62 Patrol Version 2 Rear Bars suit Y62 Patrol models; Series 1-4, all models
These new bars were design to be super high clearance.
Comes with a 3.5 tonne incorporated tow hitch along with a 4" drop hitch to suit most vehicles.
These bars come with full waterproof loom kits, as standard, to ensure easy fitment/connection of your Raslarr rear bar lights.
Running non-supplied hitch could change your tow rating and/or void our warranty terms.
Ability to chose from different carrier configurations.
The centre part of the rear bar is made from 6mm steel, and the wings are made from 3mm steel. All laser cut to precision.
The Ti-L rear bars come with a custom wing infill to allow for the Blind-spot/Lane departure sensor.
All features technology based on your vehicle will work exactly the same with Raslarr rear bars fitted.
The sensors get refitted back into the rear bar and your trailer plugs have a nice provision tucked up underneath the rear bar.
Comes with new RoadVision reverse and stop/tail lights.

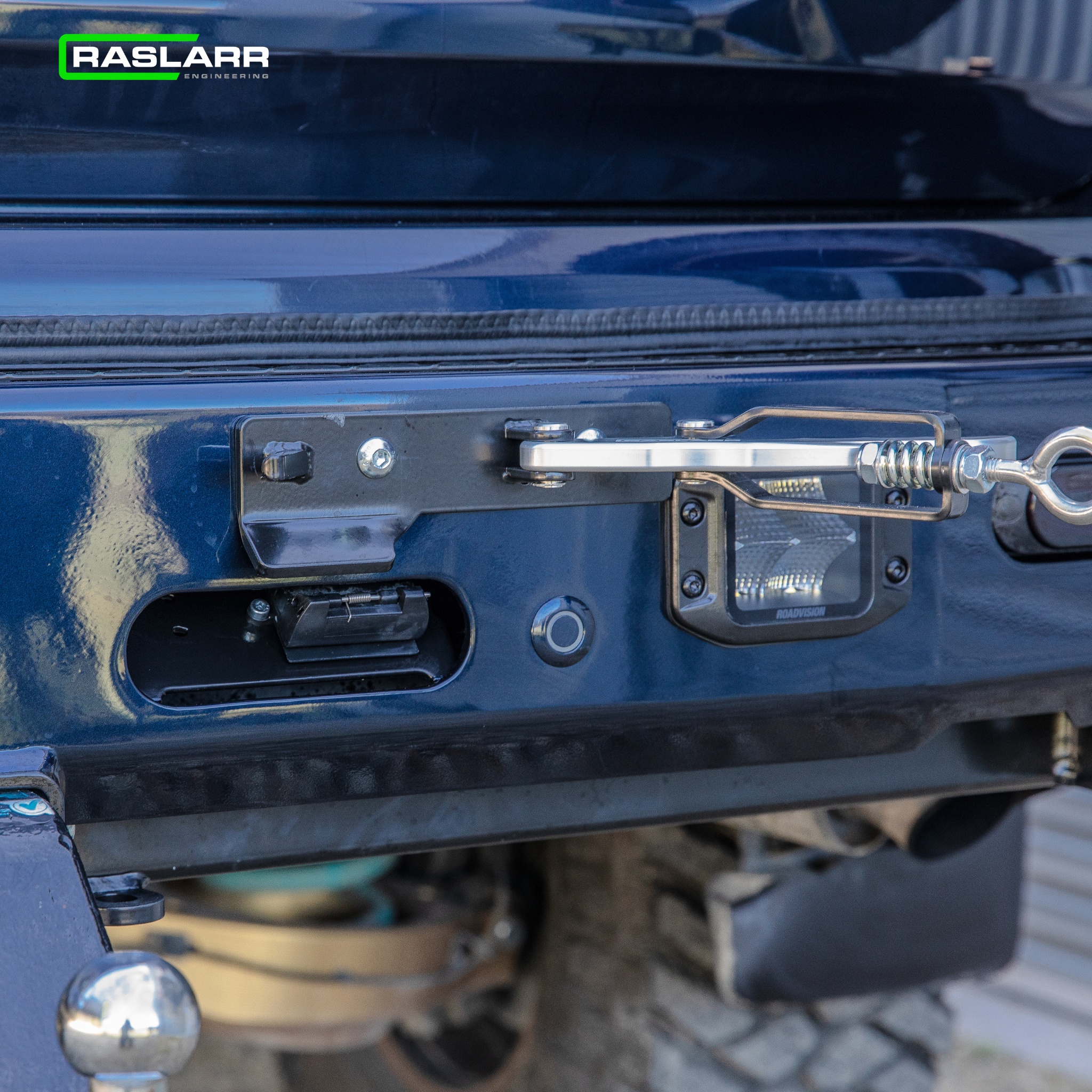

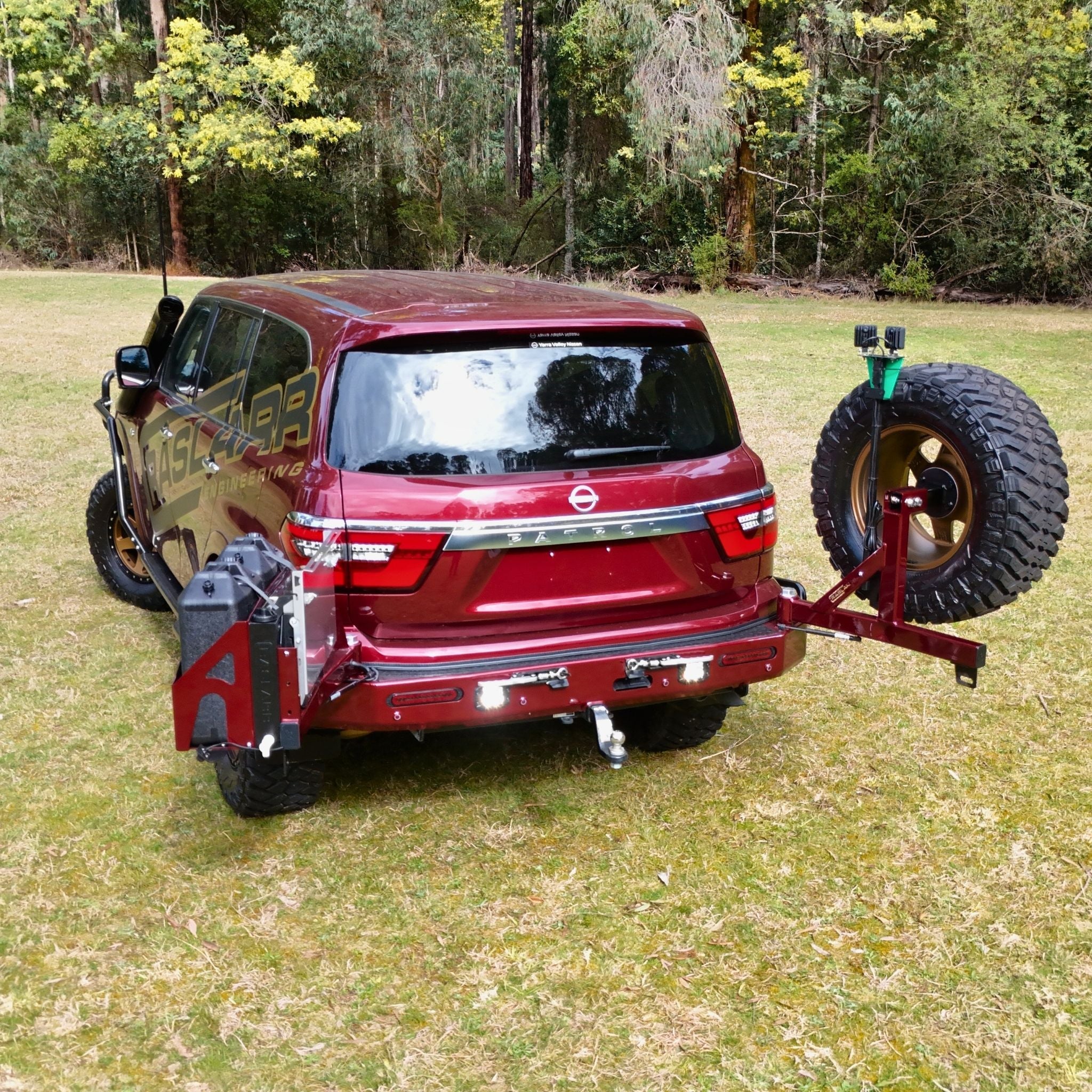

The swing aways have Australian made fully adjustable stainless and billet combination latches paired with CNC machined joints running a roller bearing to allow for smooth operation.
Swing aways are fitted with gas struts for peace of mind when opening carriers.

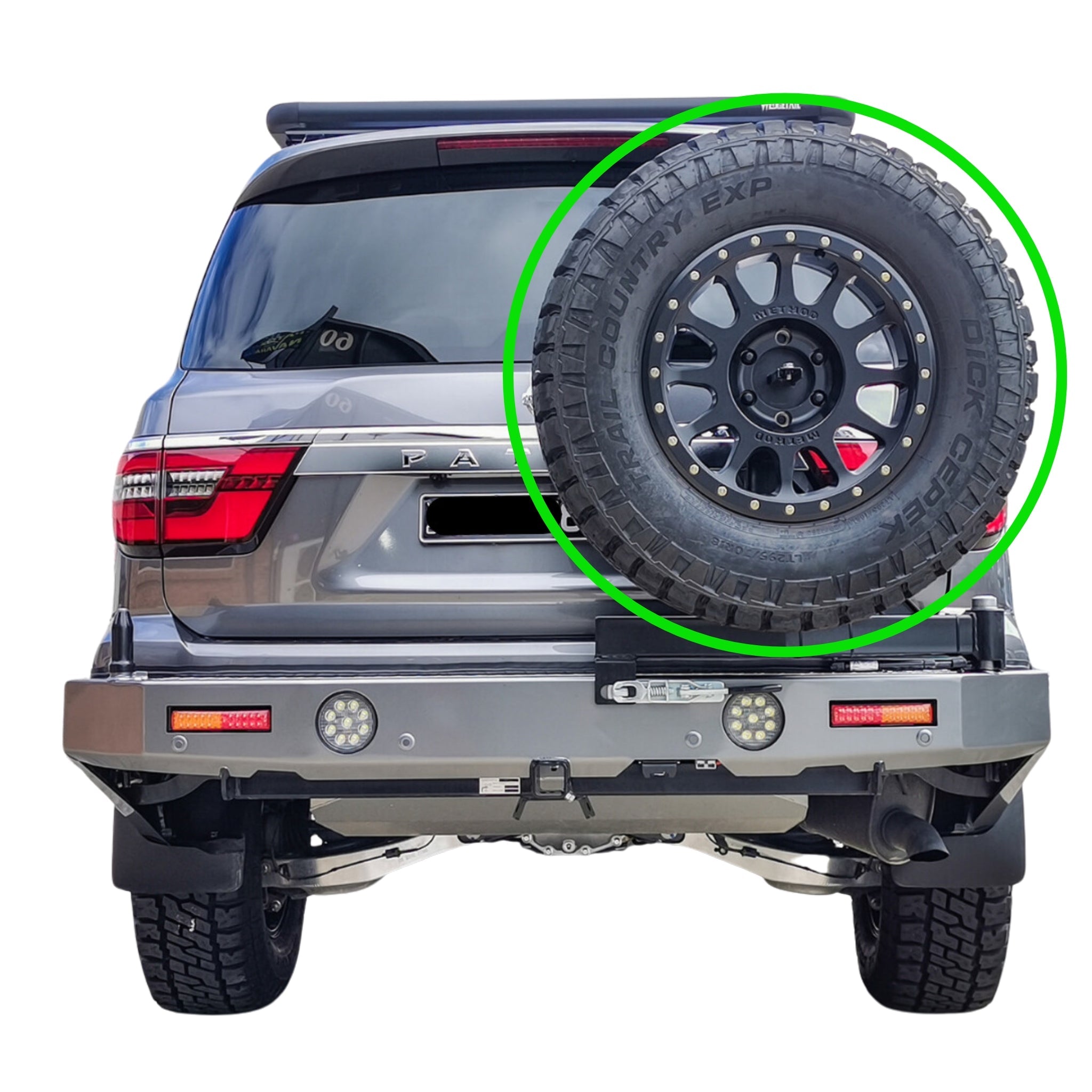

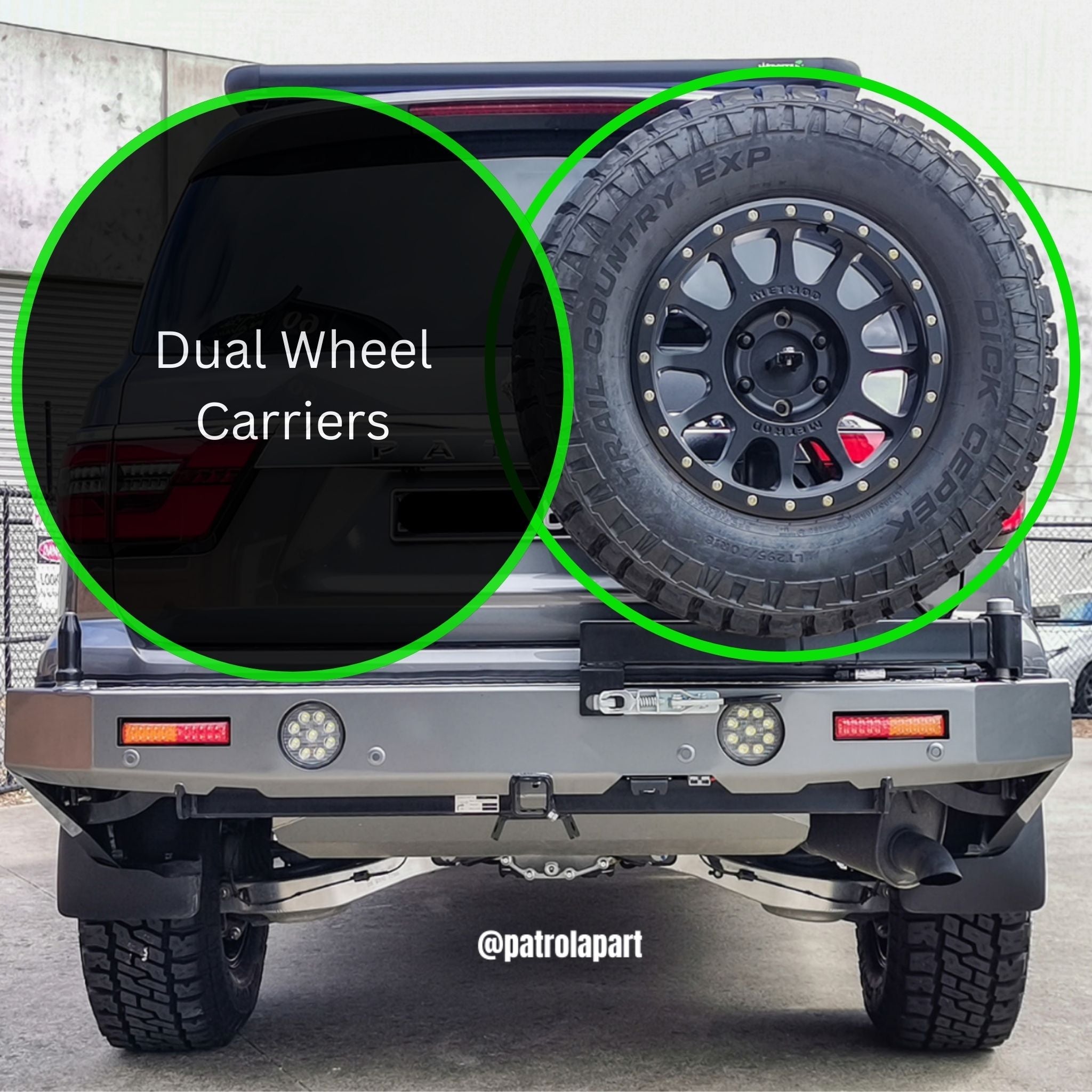

If opting for the wheel carriers, these are equipped with adjustable mounting flange to suit different offset wheels.

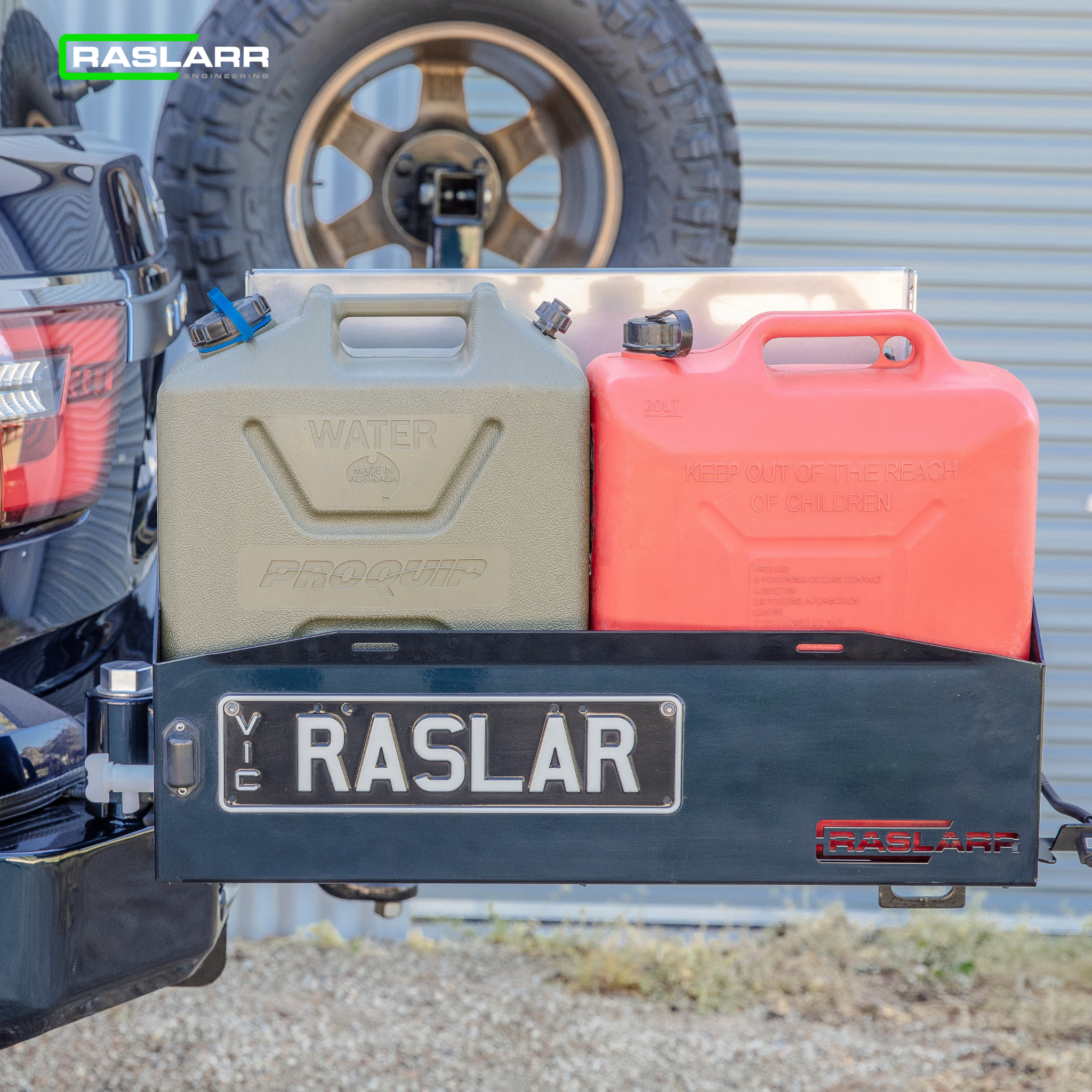

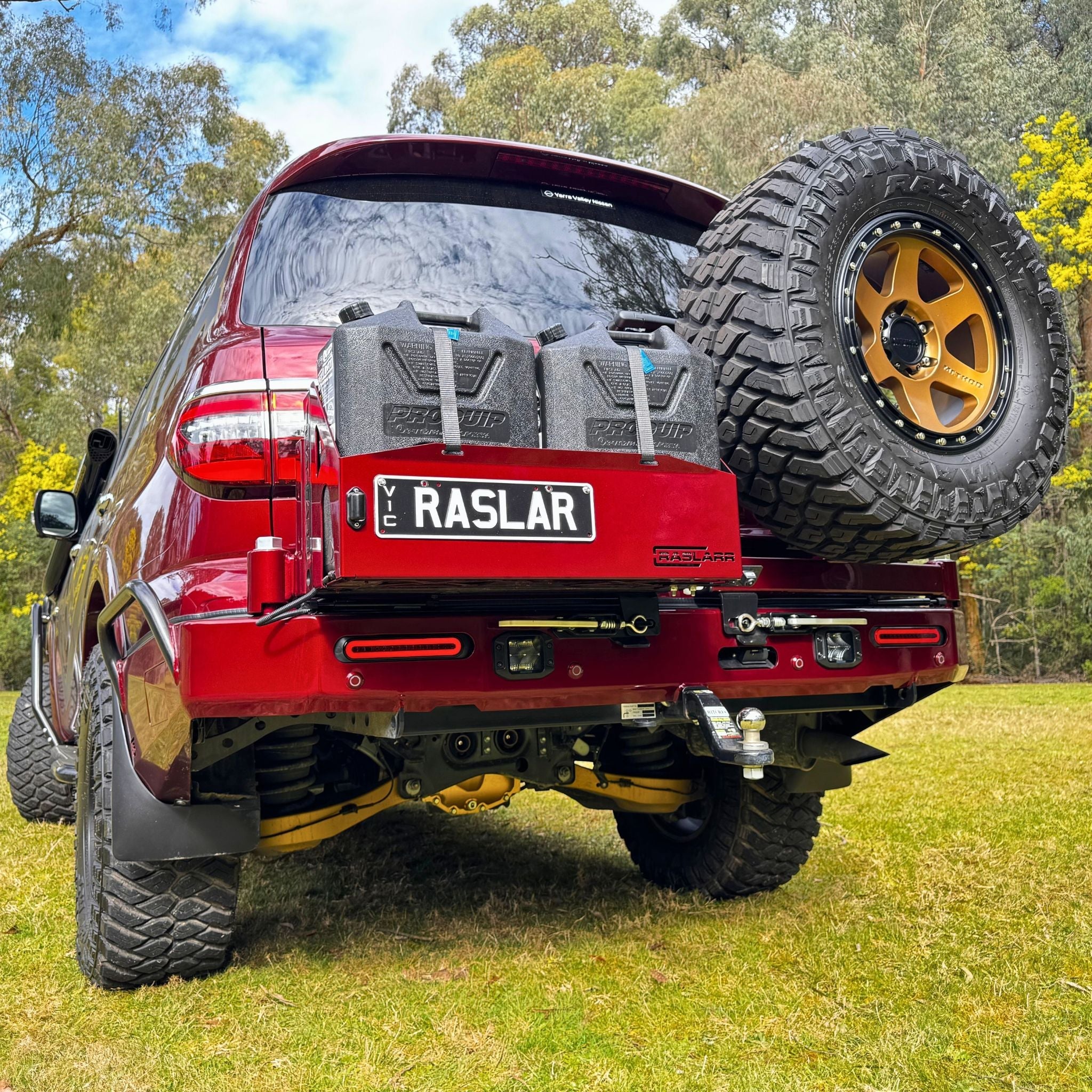

All rear bars are capable of carrying up to dual 35's comfortably or 35" tyre and dual jerry can holders.
Harness/Wiring System Information:
This kit replaces the Nissan style trailer plug kit to include the reverse signal in the loom allowing a direct plug in system to your Raslarr rear bar.
This also has an incorporated trailer plug loom & 7-pin flat plug.
Camera can be relocated or remain on the door.
Unfortunately the camera relocation kit is only applicable to the S4 and S5, S1-3's will need to be relocated yourself or by your chosen auto-electrician.
These are made from quality Australian steel with quality workmanship.
WEIGHT OF PRODUCT:
Rear Bar: 78kgs (approximately)
Wheel Carriers: 15kgs
Dual Jerry Can Holders: 17kgs
We Can Fit Your Rear Bar:
Our team is fully equipped to professionally fit your rear bar. Contact us to schedule an installation.
