Raslarr SKU: NIPATY62BB03

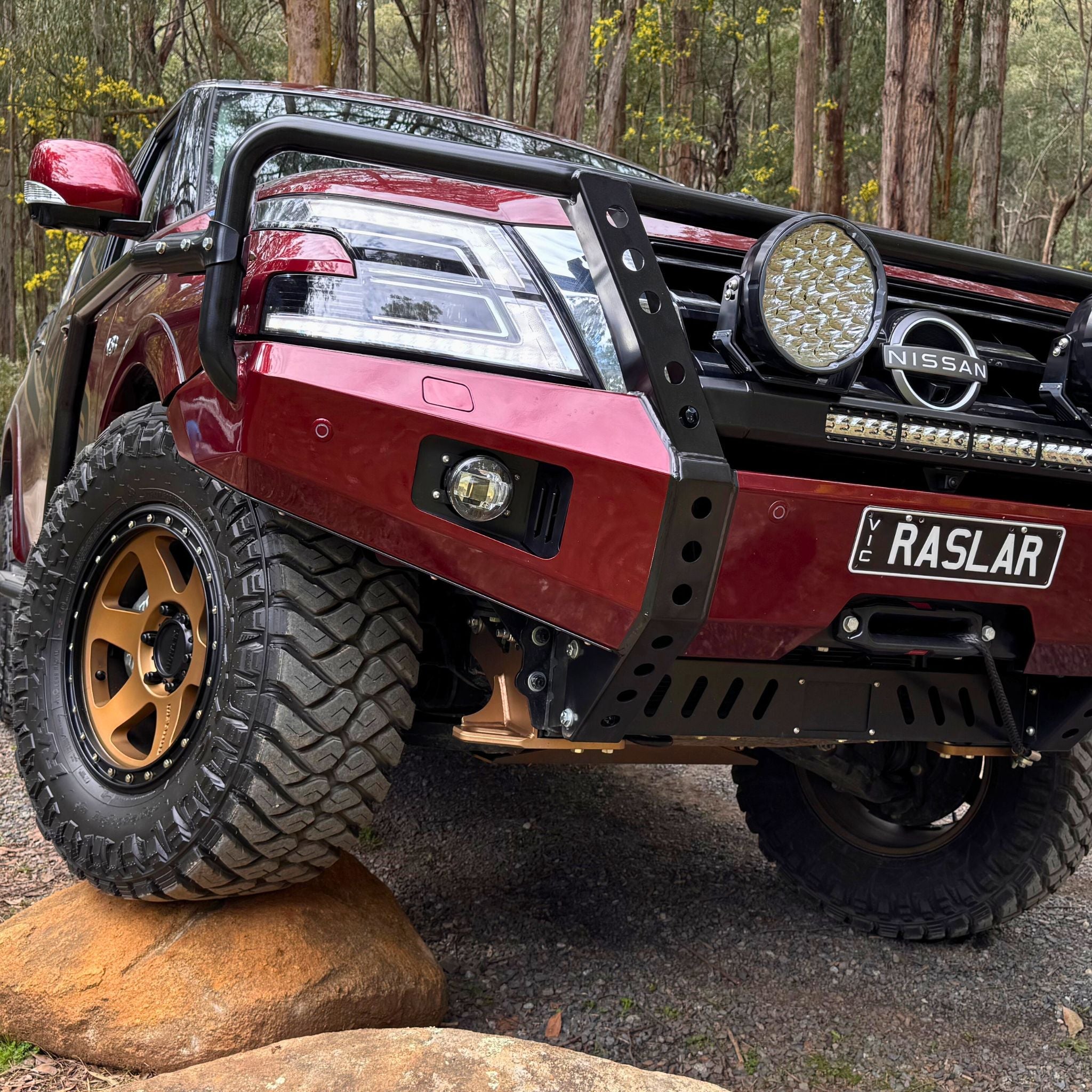

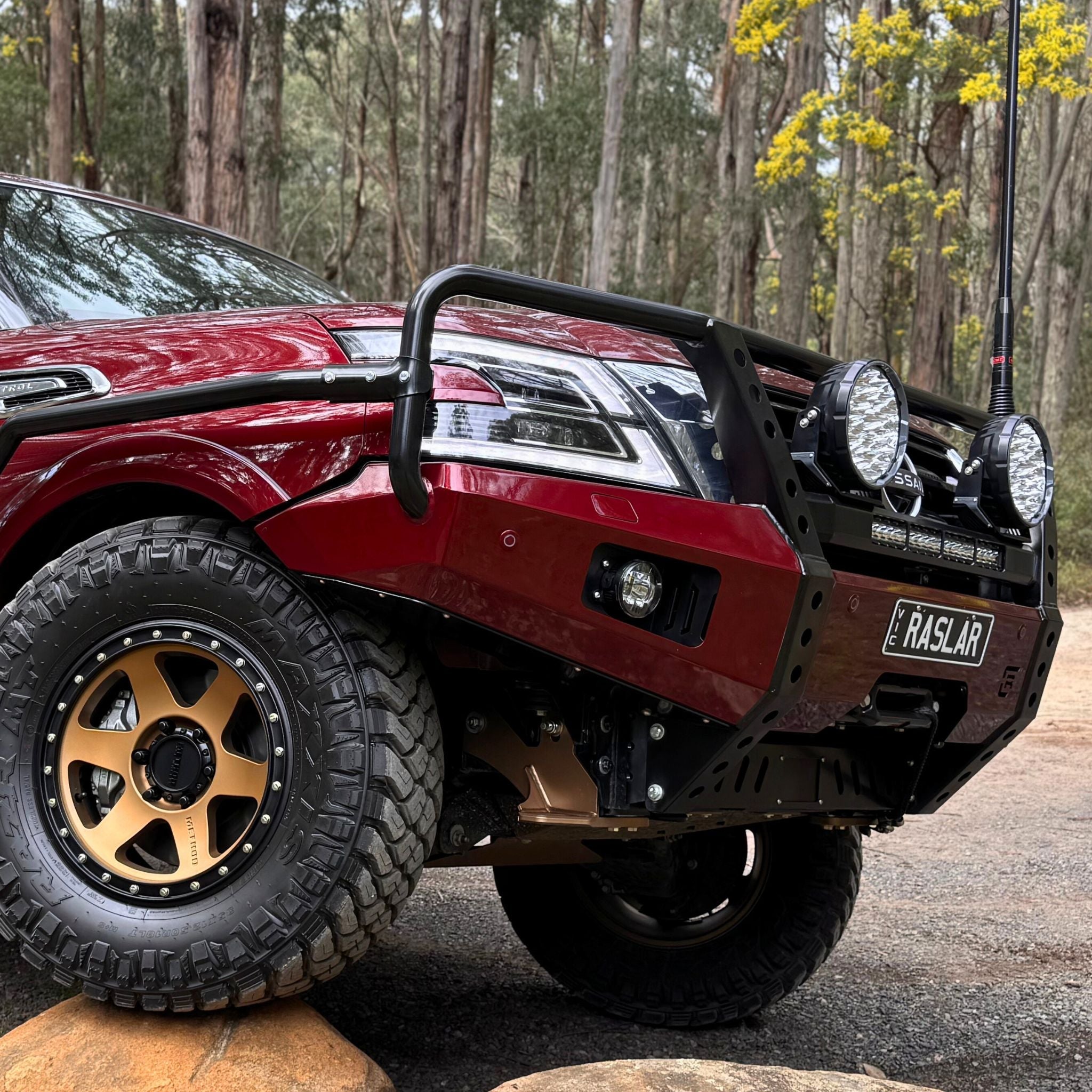

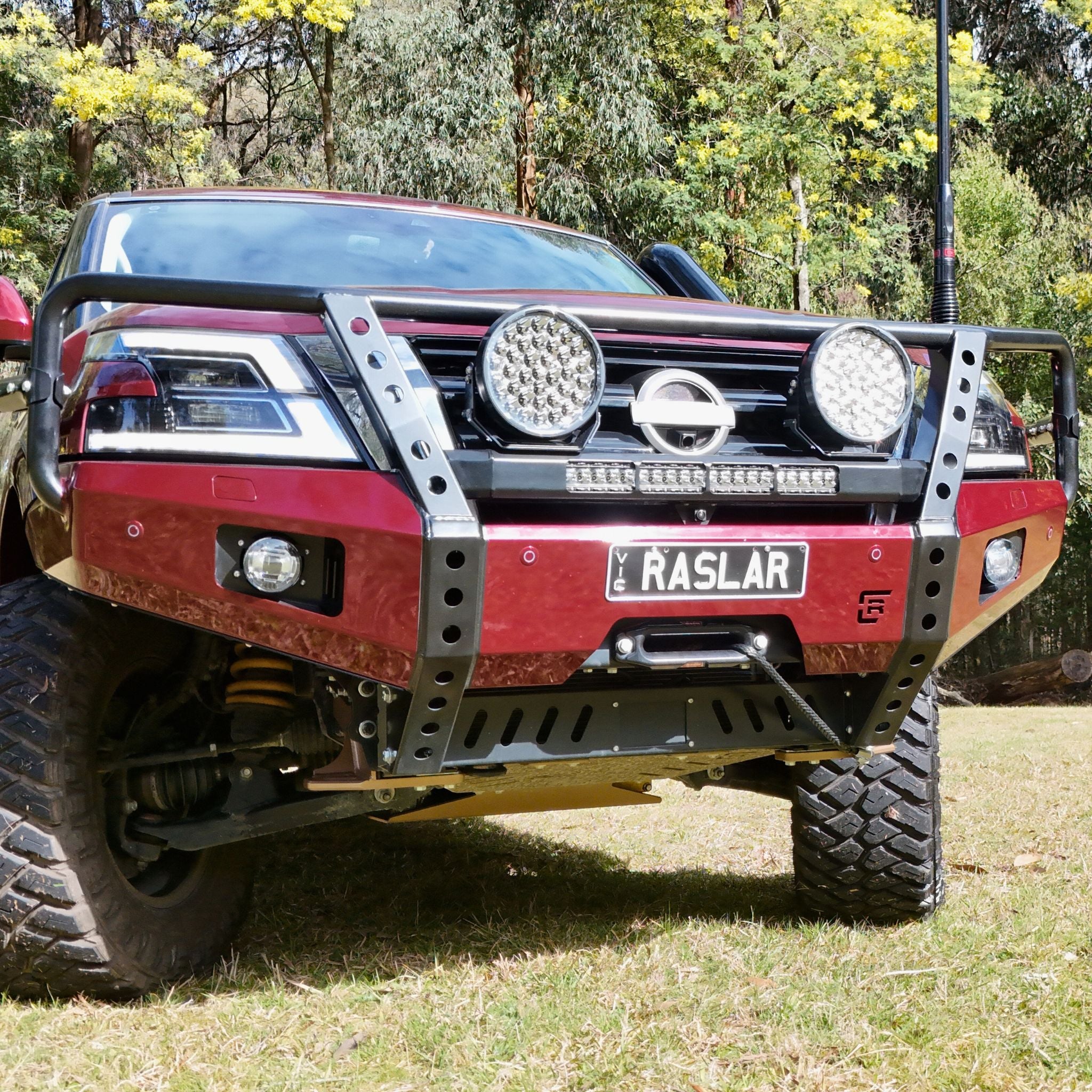

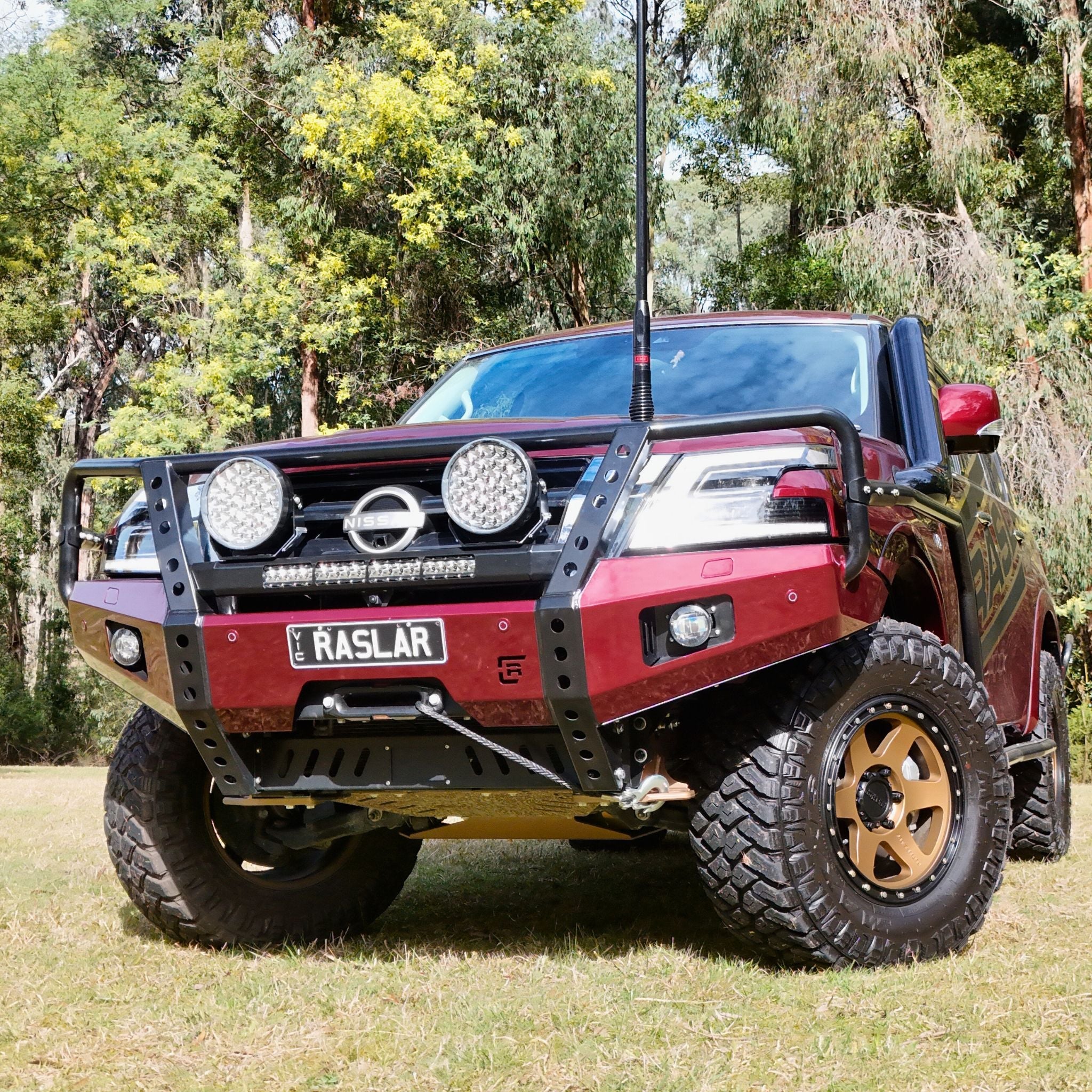

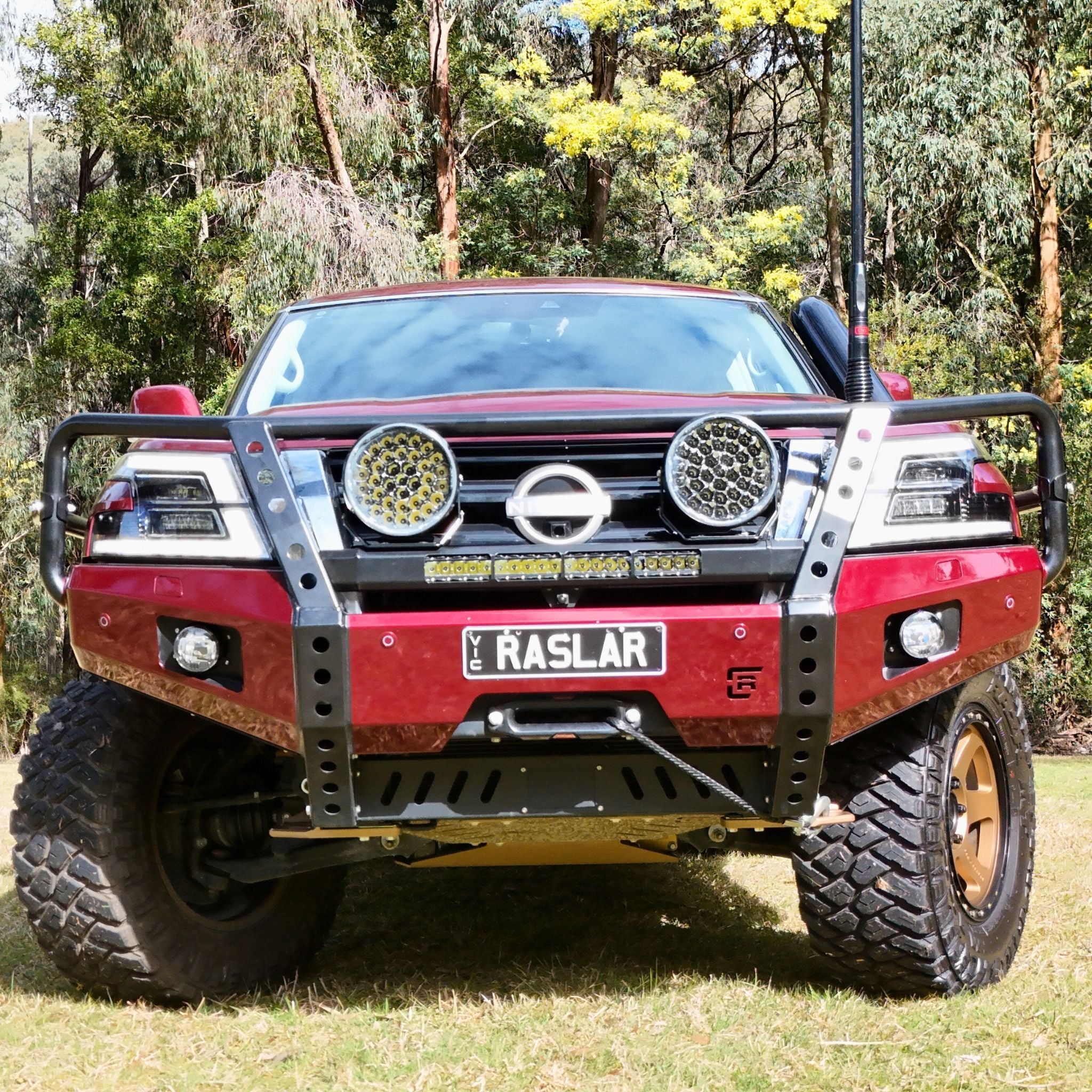

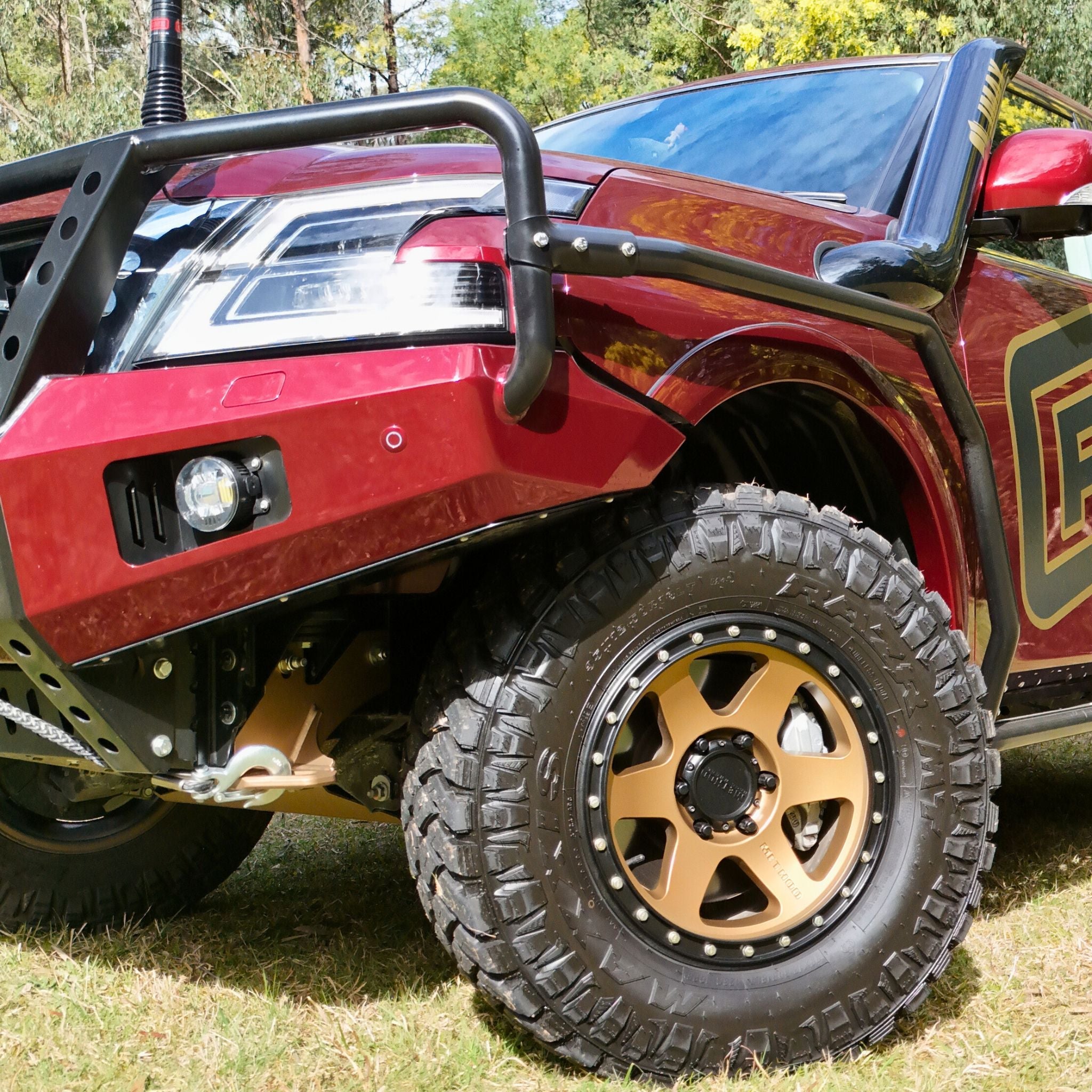

Raslarr Dallas Hooped Bull Bar for Nissan Patrol Y62 Series 5

Made to Order Product Current Manufacturing Lead Time: Please Enquire  If you need more information or have specific time requirements,...
Mode to fit
Light bar plug & play kit
    Sale price $4,000.00Regular price
    Regular price $4,000.00
    Tax included. Shipping calculated at checkout.
    Will this fit your 4WD? Add your vehicle to check fitment before you buy.
    Raslarr Dallas Hooped Bull Bar for Nissan Patrol Y62 Series 5
    Sale price $4,000.00Regular price
    Regular price $4,000.00

    Raslarr Dallas Hooped Bull Bar for Nissan Patrol Y62 Series 5

    Raslarr Dallas Hooped Bull Bar for Nissan Patrol Y62 Series 5

    Made to Order Product

    Current Manufacturing Lead Time:

    Please Enquire

     If you need more information or have specific time requirements, feel free to contact us



    PRODUCTION DESCRIPTION



    Suits Series 5, all models; Ti, Ti-L & Warriors

    • Warriors will require trimming of the bash plates, flares clip off.
    • These will not fit S1-4 Models, these are still in the design process.
    • These are a 1-piece design compared to our low line variant (Winter Bull Bar), which are 3-pieces
    • ADR Compliant
    • Light bar section is bolt-on with the ability to remove if not running or to run our 3 & 4 heavy duty light options (5mm)
    • Comes with Raslarr soft shackle Recovery points (as of May 2024)
    • Capable of carrying low mount winches with a straight fairlead (not offset fairlead).
    • Only fit slimline numbers plates, standard ones can be run with a flip up number plate bracket (not Raslarr)
    • Plastic radar cover.
    • Optional Stedi 21.5″ light bar & fog lights.
      • Factory fog lights will not fit back into the bull bar.
    • Will fit any Stedi round driving lights (and most other brands).
    • 2 aerial tabs.
    • 50mm OD Tube for the headlight hoops, with 3.2mm wall thickness.
    • The main section is constructed from a combination of 6mm and 3mm mild steel.
    • The wings are constructed from 3mm mild steel.
    • Sensors and washer jets work with new bull bar fitted.
    • Comes standard sandblasted, zinc primed & satin black powder coated
    • Comes with all new hardware to mount your product.

    Stedi fog lights & light bar optional

    If you require Stedi fog lights and a light bar on your bull bar, please add a comment in the order notes section at checkout. Please note: this will incur an additional charge. We will contact you once the order has been placed.

    • Fog lights(+ $160.00 AUD)
    • Light bar(+ $219.00 AUD)

    WEIGHT OF PRODUCT: (Doesn’t include fogs or light bar)

    • Complete bar: 64kgs
    • Light bar bracket: 4kgs
      (standard version, not heavy duty)
    • Recovery Points: 10kgs
    • Total Weight of product (with recovery points): 78kgs
    • Removal of misc parts when fitting: 23kgs
      Total weight added to vehicle: 55kgs

    Contact Us for Colour Coding Quote:

    The Raslarr bull bar comes standard with a sandblasted finish, zinc priming, and is powder coated in satin black.

    We also offer colour matching for the bar work to suit your vehicle. To ensure a perfect match, please provide the exact colour code (e.g., KAD, QAC, etc.)

    We Can Fit Your Bull Bar:

    Our team is fully equipped to professionally fit your bull bar. Contact us to schedule an installation.

    Workshop & fitting

    Need it fitted? We can help.

    Our workshop team can help you choose the right gear and fit it to your 4WD, at Ferntree Gully or Pakenham.

    • Fitting & compatibility checks
    • Expert advice from our team
    • Get back on track with confidence
