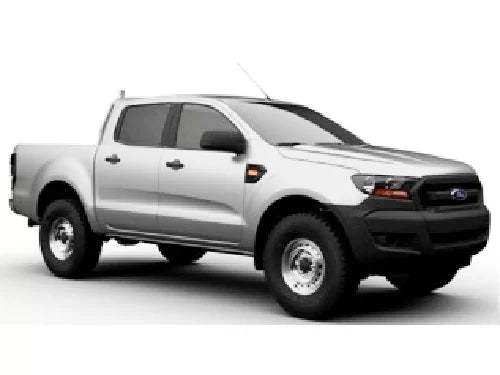

Dobinson GVM Upgrade Ford Ranger PX3 (06/2018 – 04/2022)
GVM increase to 3500kgs
✅ Pre-Registration
✅ Post-Registration*
Coil Spring Options
- 45 mm Lift – No Load
- 45 mm Lift – 80–100 kg
Leaf Spring Options
- 40 mm Lift – 280 kg Constant Load
- 40 mm Lift – 500 kg Constant Load
Shock Absorber Options
- Twin Tube Nitro-Gas
- IMS
- MRR
Front axle limit revised to 1480 kg
Rear axle limit revised to 2020 kg
GVM increase to 3500 kg
GCM unchanged
OEM wheels & tyres are compliant
- 2 x Front Coil Springs
- 2 x Front Shock Absorbers
- 2 x Rear Leaf Springs
- 2 x Rear Shock Absorbers
- 2 x Front Sway Bar Link
- 2 x Rear Shackle Kit
- 1 x Rear Shackle Bush Kit
- 4 x Rear U-Bolt Kit
- 2 x Rear Shackle Pins
- 1 x Tailshaft Spacer Kit
