Engine & Transmission

Engine and transmission longevity comes from the boring stuff: clean fuel, clean air, controlled temperature and a proper catch can. The biggest expense on a modern diesel 4WD is not the bull bar or the suspension. It is replacing turbos, injectors, EGR valves and intake manifolds at 120,000km because the factory PCV system fed oil into the intake and the factory fuel filter could not handle remote diesel quality.

Spend $1,500 on filtration and a catch can early in the vehicle's life, and you save $15,000 in workshop bills later. That is what this collection is about. Ultimate Offroad stocks Direction Plus diesel filtration, Safari ARMAX intakes, Unifilter air filtration and transmission cooling kits matched to common Australian utes and 4WDs.

KEY CATEGORIES AND WHAT THEY'RE BUILT FOR

CATCH CANS FOR DIESEL RELIABILITY

A catch can sits between the engine's PCV (positive crankcase ventilation) outlet and the intake manifold. It intercepts the oil-and-fuel emulsion the factory system would otherwise feed straight back into the intake, where it bakes onto valves and chokes the turbo.

Direction Plus catch cans are our default fit: vehicle-specific kits, OEM-grade fittings, full instructions. Empty the can every 5,000 to 10,000km, more often if the vehicle works hard. Cheap to maintain, expensive not to. Cheap universal cans leak, often dump the contents back into the intake under load, and we have seen the failures: that is why we fit Direction Plus only.

SECONDARY FUEL FILTERS

Australian diesel quality varies, especially out of remote bowsers. Remote fuel often carries water and finer particulates than the factory primary filter is designed to catch. A secondary fuel filter (Direction Plus is the standard) adds another stage of filtration before the high-pressure injection system.

The injection pump and injectors on a modern common-rail diesel are precision components, expensive to replace. A $400 filter kit protects $8,000 worth of injection hardware. Mounted in the engine bay before the factory primary filter, or as a pre-filter on the chassis rail, vehicle-specific kits ship with the right bracket and instructions.

PERFORMANCE AIR FILTRATION

Touring 4WDs running through dust need filtration that catches fine particulate without choking airflow. Safari ARMAX intake systems pair with the matching snorkel to deliver more cubic-foot-per-minute airflow at the same filtration spec, useful on tuned engines and heavy tow builds.

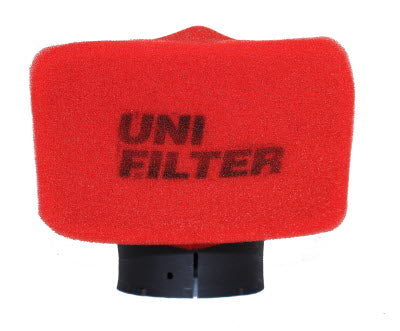

Unifilter foam air filters offer a serviceable, washable filtration option for builds that see heavy dust. Foam is the standard for heavy dust touring; paper is fine for sealed-road and light gravel.

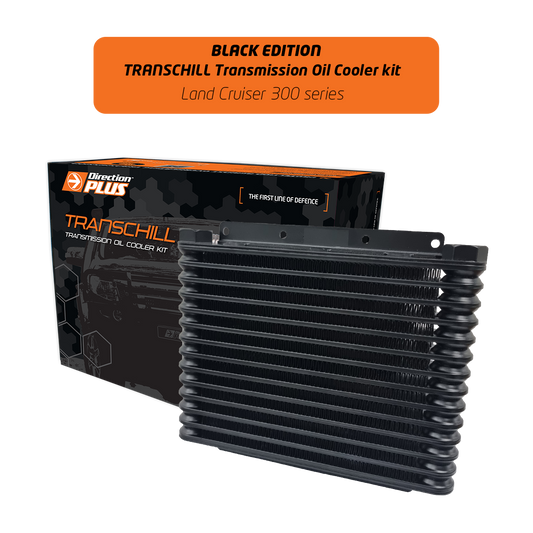

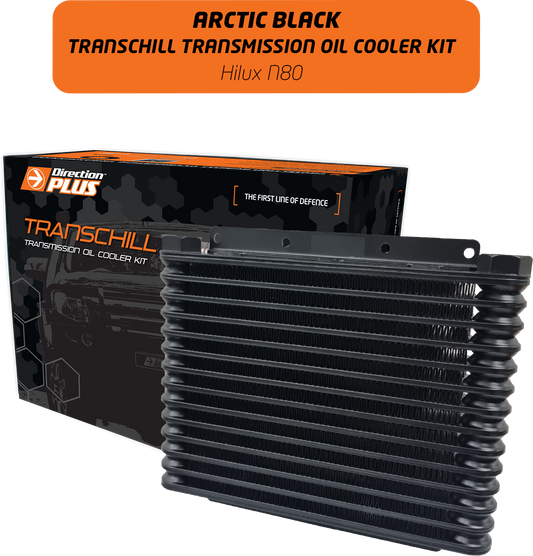

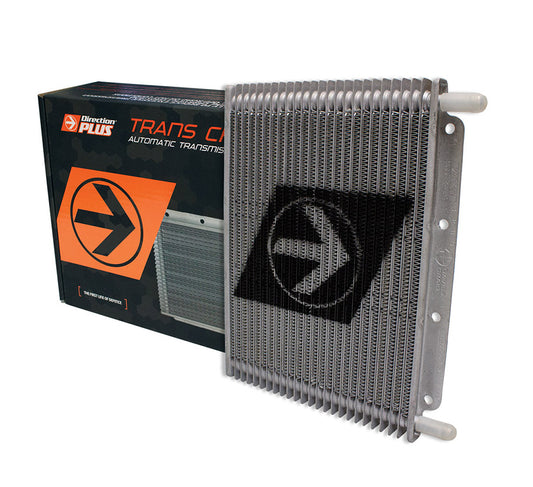

TRANSMISSION COOLING

Auto transmissions are temperature-sensitive. Sustained high temperature kills the fluid faster, the fluid kills the box. Transmission cooler kits add dedicated cooling capacity beyond the factory radiator-mounted exchanger, dropping operating temperatures by 20 to 30 degrees under load.

Critical for tow vehicles, slow-going off-road work and high-altitude touring. Any vehicle that tows over 2,500kg regularly, does sustained low-range work, or runs in hot conditions for long periods needs a cooler. If you ever see transmission temperature above 110 degrees on a Scan Gauge or factory display, you needed one yesterday.

DIFF BREATHERS

If you cross water, fit extended diff breathers. Factory breather hoses sit low under the vehicle: hot diff hits cold water, internal pressure drops, water gets sucked through the breather, diff oil emulsifies, bearings die.

Extended breathers route the breather lines high (under the bonnet or up to the bull bar) so the diffs vent dry air, not water. Even shallow water crossings can suck water through standard breathers if the diff is hot, so if you cross any water more than 200mm deep, fit them. Cheap insurance against an expensive failure.

BRANDS WE STOCK AND WHY

Direction Plus is the default brand for diesel filtration in Australia. Their catch can kits and secondary fuel filter kits are vehicle-specific, OEM-grade build, and supported by an established service network. We fit Direction Plus on every serious diesel touring vehicle that comes through the workshop.

Safari covers performance air intake systems including the ARMAX series and the Safari snorkel range. Safari is the brand we trust for high-airflow induction across hard-working diesels and tow rigs, made in Australia. Unifilter Australia brings foam-element air filters with a long Australian-made history: washable, serviceable, suit dusty conditions, used on heavy off-road and touring vehicles where filter changes are frequent.

We also stock HARROP and MPI Automotive components, plus selected diff breather kits and engine monitors from Scan Gauge and other quality brands.

WHAT A QUALITY ENGINE AND TRANSMISSION SERVICE INVOLVES

Filtration and cooling installs touch fuel, oil and engine-bay plumbing. Wrong catch can routing creates intake leaks. Wrong fuel filter plumbing causes fuel starvation. Wrong transmission cooler routing creates fluid leaks at speed. None of this is the sort of work to gamble on.

We do this work at Ferntree Gully and Pakenham with the right diagnostic gear, the right hose specifications, and full post-install pressure testing. Send us a service enquiry with your vehicle and the spec.
