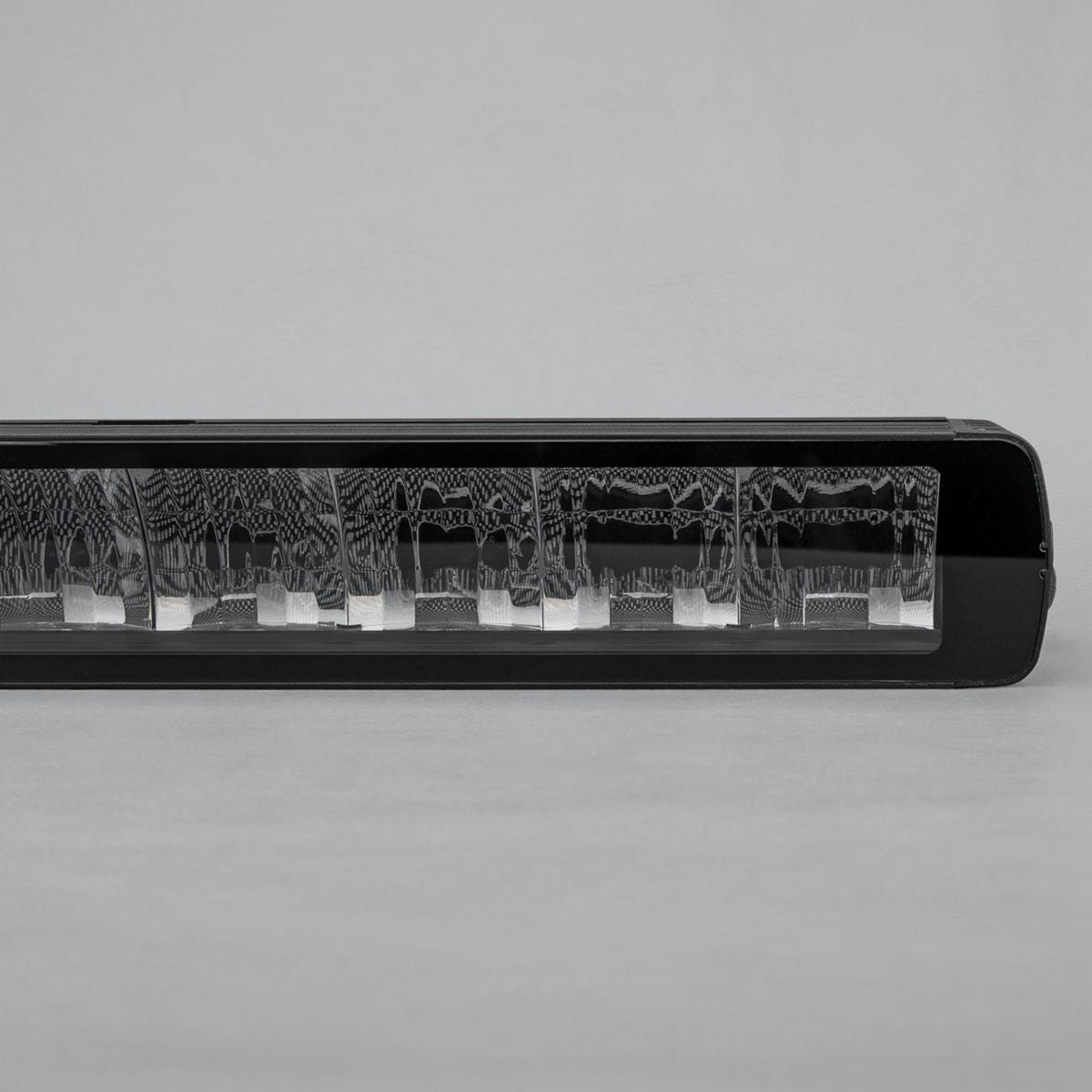

ST-X 40.5 inch LED Light Bar

ST-X 40.5 inch LED Light Bar

$498.00

ST-X 40.5 inch LED Light Bar

$498.00

Electrifying Performance

At the core of the ST-X 40.5 Inch Light Bar you will find 16 x 15W LEDs with reverse facing emitters that push out a staggering 8400 Lumens. In a stunning 5000K colour temperature, the light is pure white and easy on the eyes. The 30 degree horizontal beam pattern is optimised for medium to long range illumination, all the way out to 1 lux at 859 meters. The ST-X 40.5 Inch delivers very little light in the first 80 meters, making use of your vehicles lights. The 15 degree vertical spread means minimal light wasted and avoids that annoying reflection from road signs.

A Cut Above The Rest

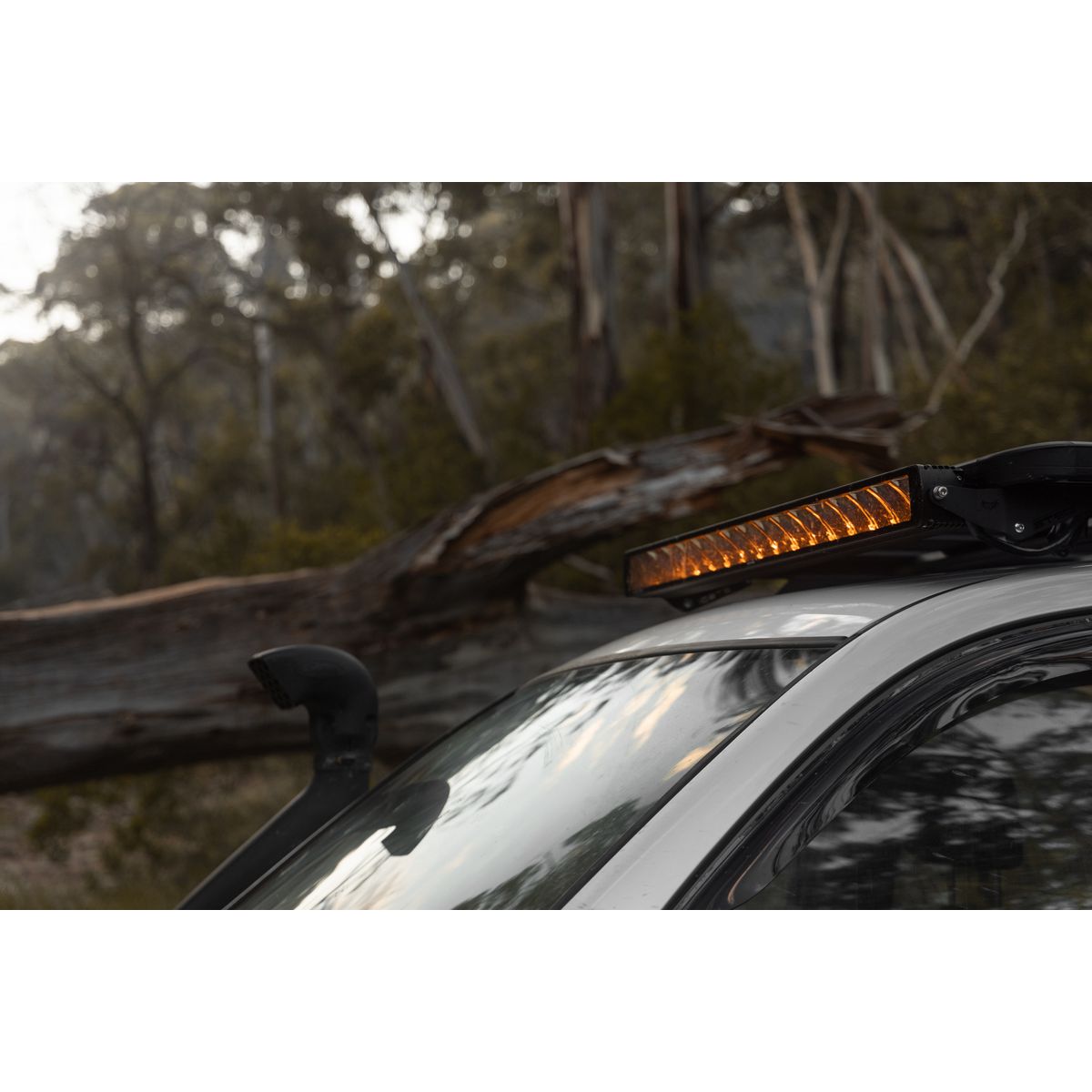

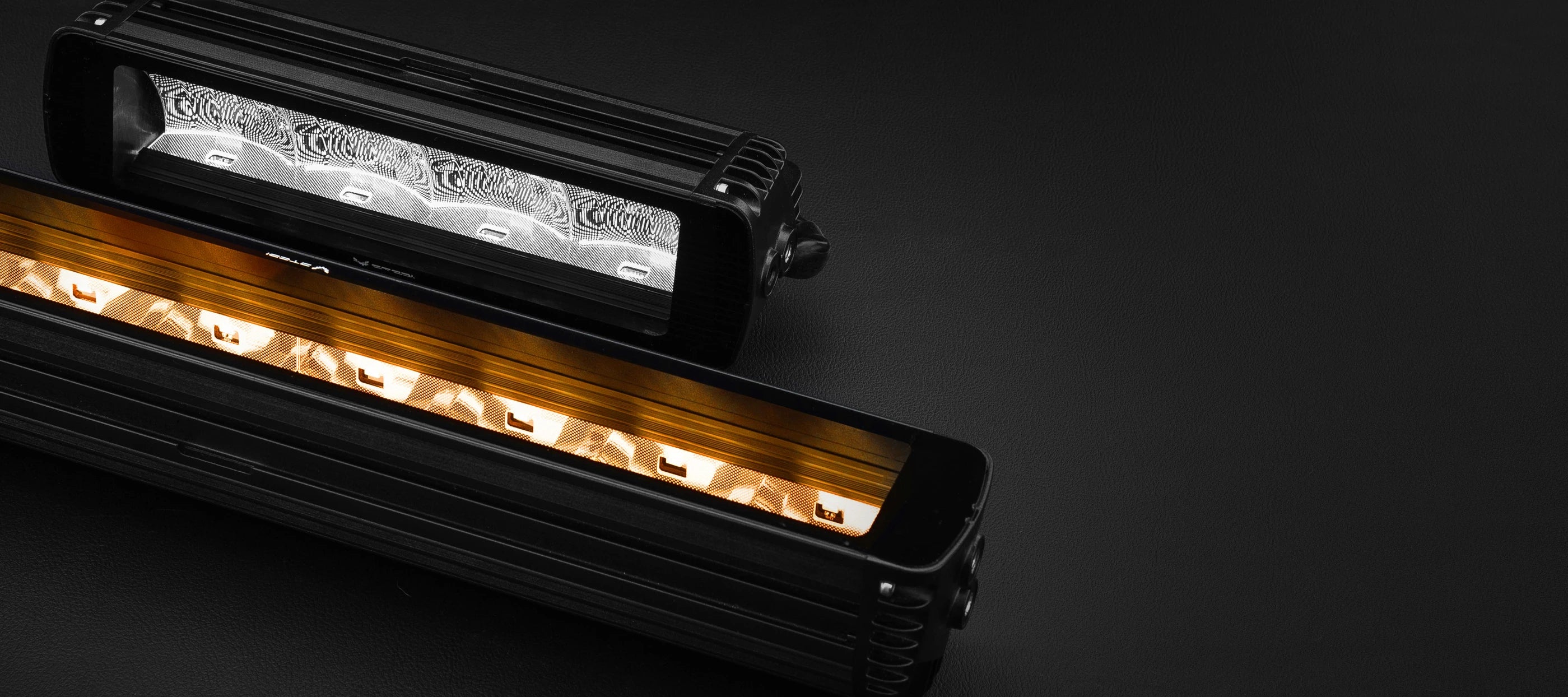

The built in amber (2700K) or white (6000K) DRL / Position Light function keeps you visible day or night. The amber light is perfect those early mornings and for cutting through fog and bad weather. Amber lights can be better in the rain as it penetrates water, rather than reflecting off it - perfect for judging puddles and pools after a drenching! Stedi have strategically hidden the separate positioning light LEDs, this offers stunning uniformity of light distribution within the light bar.

Near Invisible Frame

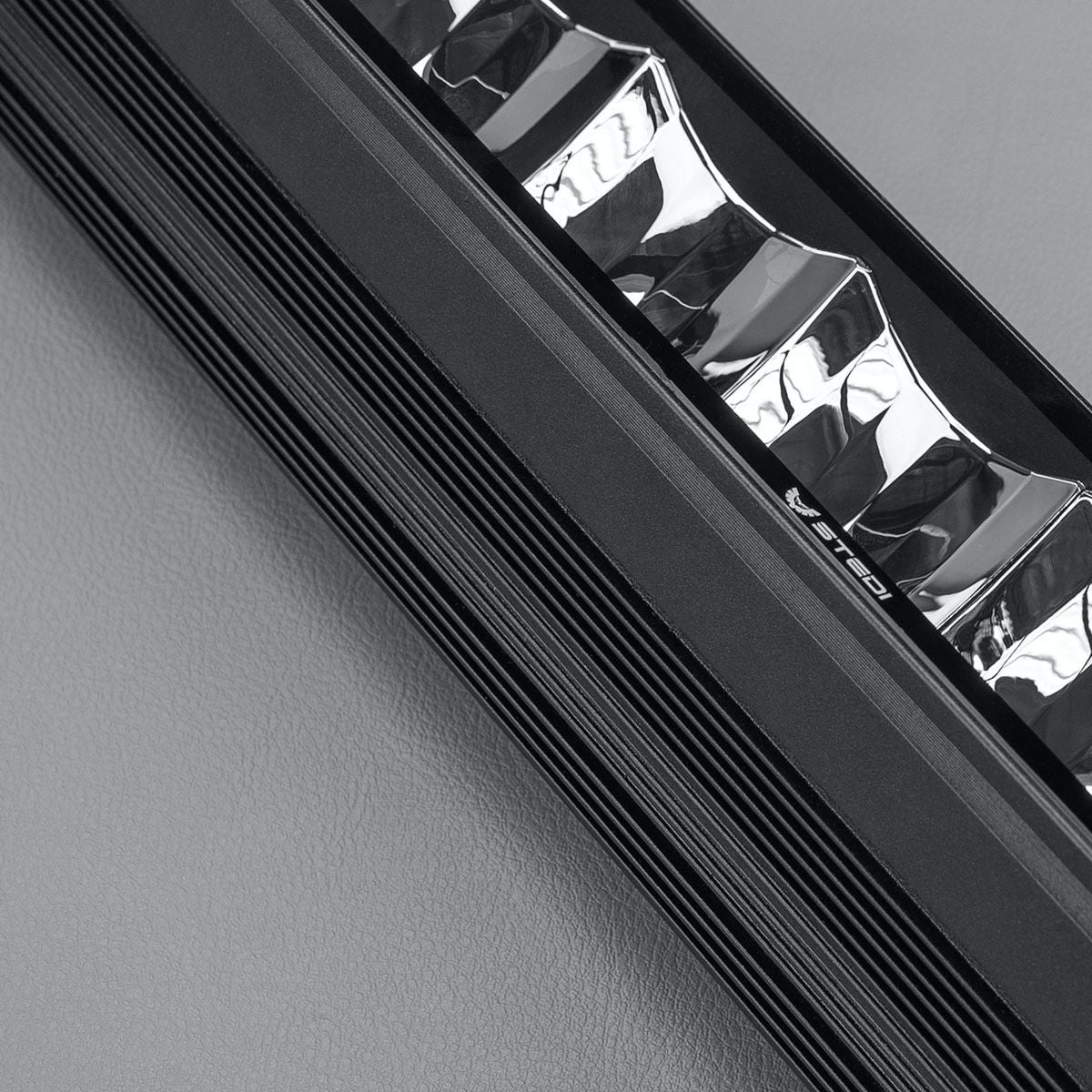

The Stedi name has become synonymous with cutting edge, innovative design. Stedi have proven this once again with their new edge to edge bonded lens. It results in a clean looking edge without the thick outside bezels with hardware and fixings. The ST-X light bar range is absolutely stunning from every angle.

Optimal Beam Pattern

If you’re looking for a driving light that lights up the road directly under your nose - keep on driving. Stedi uses a hooded reflector design and they call it "High Beam On Steroids". The ST-X range excels in high speed, highway applications. It excels when mid to long-range visibility is critical. The horizontal and vertical light spread significantly minimises the reflection from road signs and the pure white colour is great on the eyes. The ST-X range is a cut above the rest.

THE BEAM PATTERN

If you're looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

  • Significantly minimises adverse reflection from road signs
  • Controlled vertical spread minimises reflections off of high-mounted road signs.

KEY FEATURES

  • 16x 15W LEDs
  • LED Parking / Position Light Function (Amber or White built-in)
  • Breather allows pressure equalisation when rapid heat up and cool down cycles occur
  • Anodized Polyester Powder Coat
  • Weatherproof Deutsch® DTP Connector

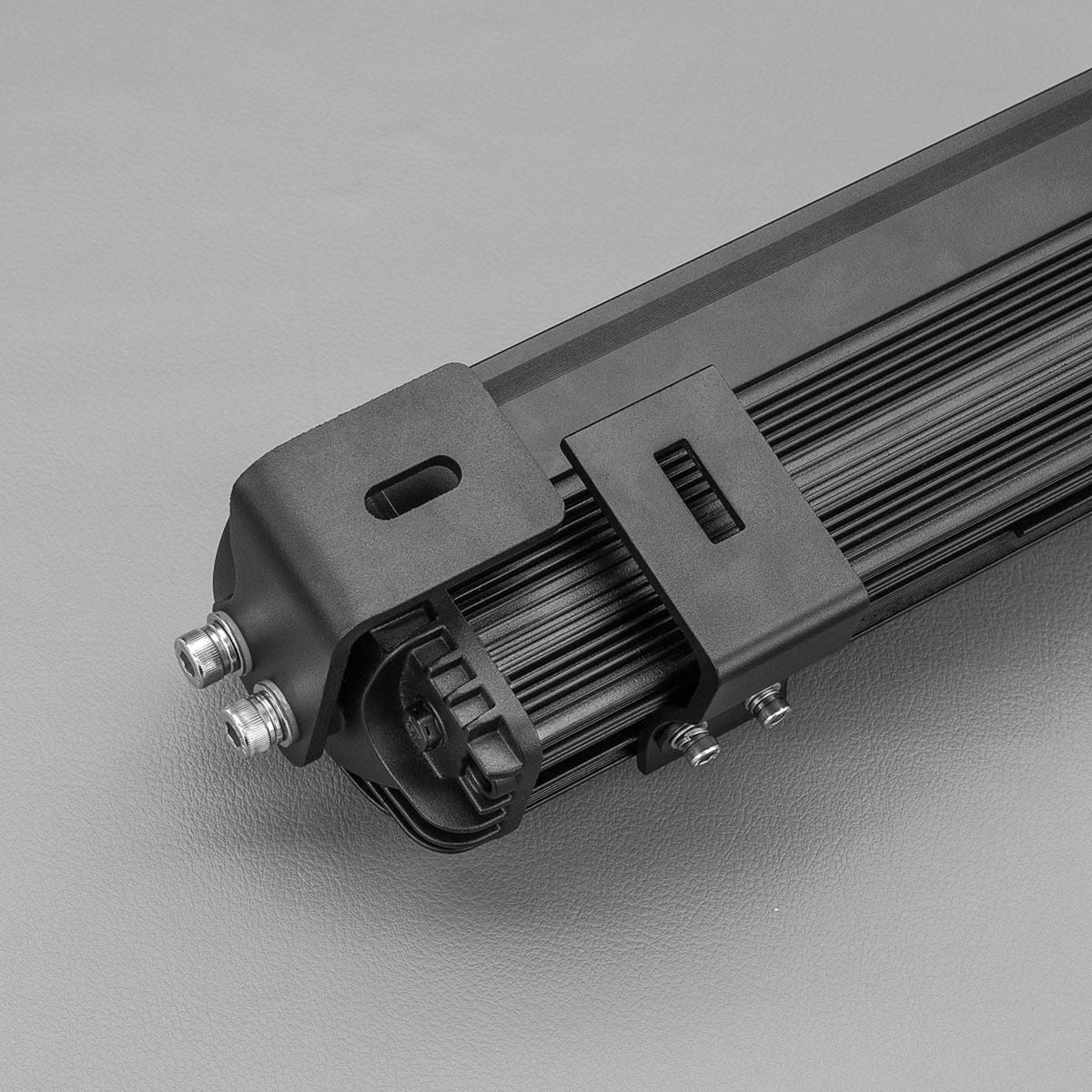

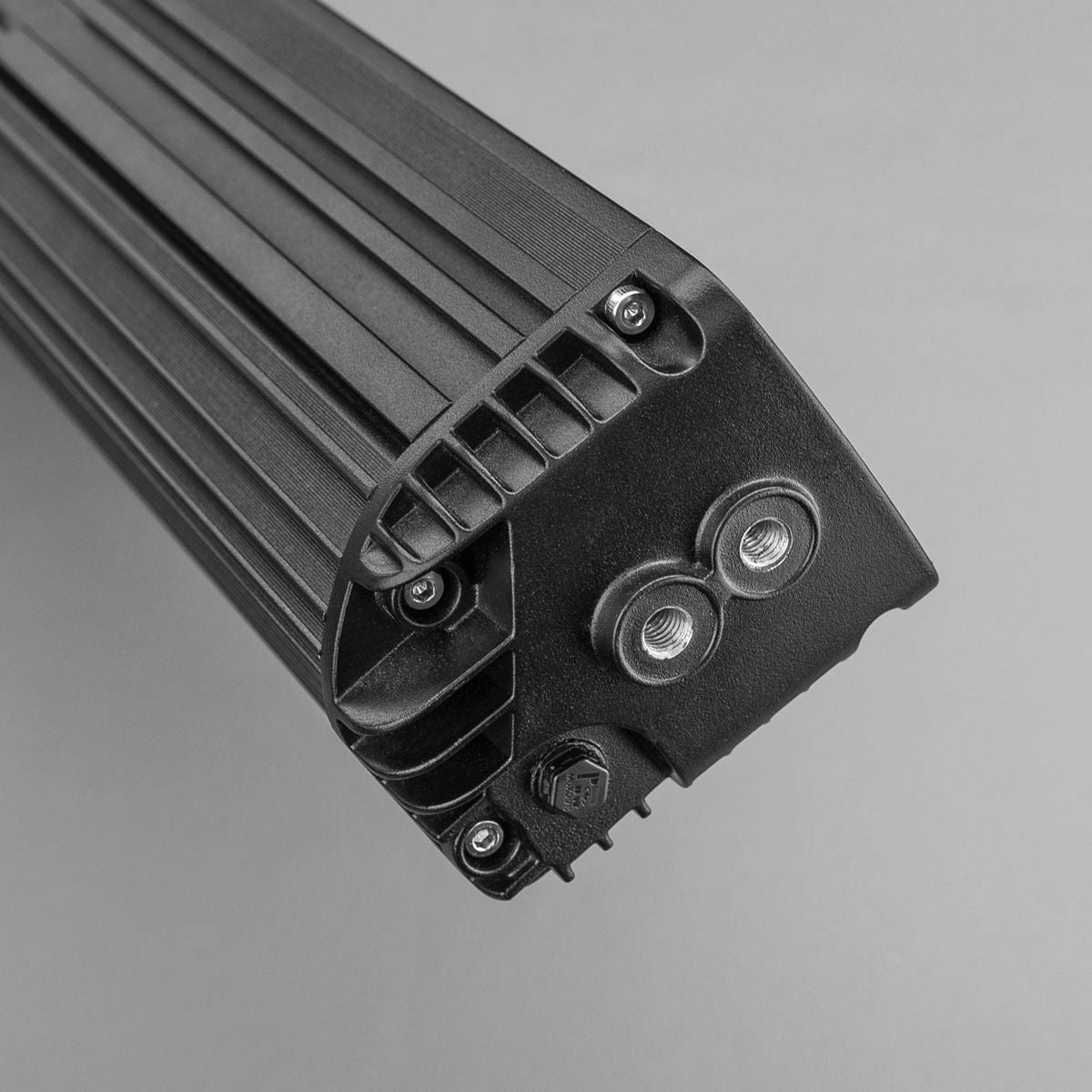

  • Includes adjustable Side brackets & Sliding bottom brackets

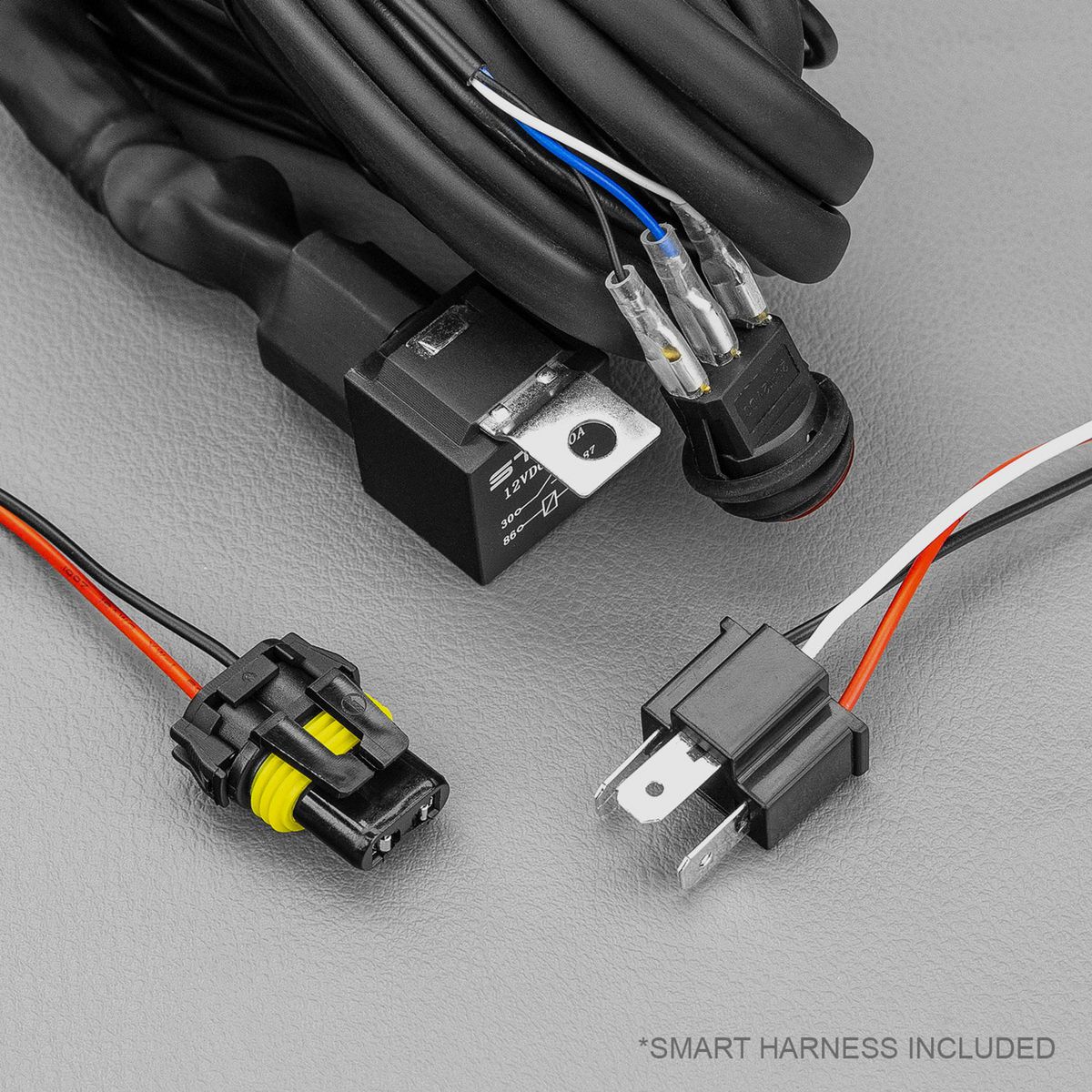

  • Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
  • Protected against reverse polarity
  • Shockproof, IP68 waterproof, UV Shielded
  • Protected Against RFI / EMC Interference
  • Voltage & current surge protection
  • Pulse Width Modulation Thermal Management

Tech Specs

VOLTAGE 9-36V
DRL VOLTAGE 12-24V compatible
AMPERES 17.2A @ 12V (full power), 3.28A @ 12V (limit power)
POWER 206.4W (full power), 39.36 (limit power)
LUMENS 8400LM (full power), 2327LM (limit power)
COLOUR TEMPERATURE 5000k
AMP RATING 0.5a
PHOTOMETRIC DATA 1 lux @ 859m (full power), 1 lux @ 450m (limit power)
LENS MATERIAL OPTICAL GRADE, HARD-COATED LEXAN
HOUSING MATERIAL 6063 EXTRUSION
INGRESS PROTECTION IP68
CANDELAS 739582 @ full power, 203337 @ limit power
CONNECTOR 60cm cable with DTP 4in
OPERATING TEMP -40°C ~ +60°C
CERTIFICATES R112, ref. 50 and R10
LIFESPAN 50, 000hrs (LM80)
PRODUCT WEIGHT 3.7kg
SHIPPING WEIGHT 4.2kg
